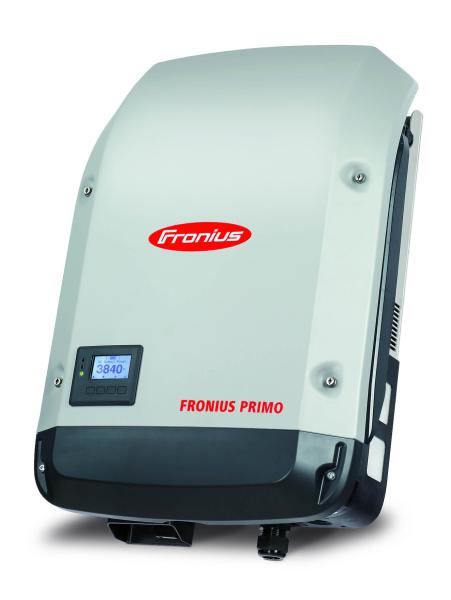

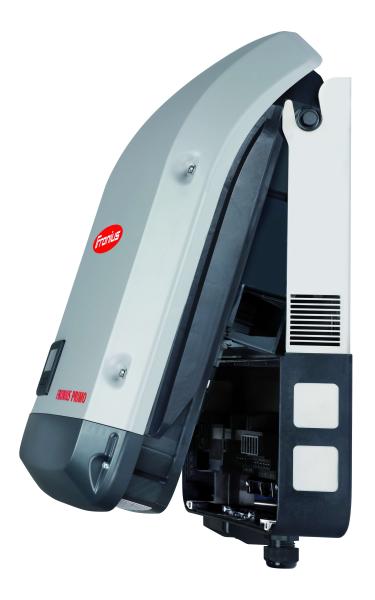

Invertor on-grid monofazat 4600W FRONIUS PRIMO 4.6-1 WLAN/LAN/WEBSERVER
Cod produs: PRIMO4.6W
6205.00 Lei + TVA
Pers. Fizice si Institutii: TVA 5% inclus
Pers. Juridice: TVA 19% inclus
Disponibilitate:
Intreaba de stoc
Garantie: 7 ani
Greutate: 23 Kg
INPUT DATA
| Number of MPP trackers | 2 |
|---|---|
|
Max. input current (Idc max)
|
12 / 12 A |
|
Max. short circuit current, module array*
|
24 / 24 A |
|
DC input voltage range (Udc min - Udc max)
|
80 - 1000 V |
|
Feed-in start voltage (Udc start)
|
80 V |
|
Nominal input voltage (Udc,r)
|
710 V |
|
MPP voltage range (Umpp min - Umpp max)
|
240 - 800 V |
| Usable MPP voltage range | 80 - 800 V |
| Number of DC connections | 2 + 2 |
|
Max. PV generator power (Pdc max)
|
6,9 kWpeak |
OUTPUT DATA
|
AC nominal output (Pac,r)
|
4600 W |
|---|---|
|
Max. output power (Pac max)
|
4600 VA |
|
AC output current (Iac nom)
|
20 A |
|
Grid connection (Uac,r)
|
1~ NPE 220/230 V |
|
AC voltage range (Umin - Umax)
|
180 - 270 V |
|
Frequency (fr)
|
50 / 60 Hz |
|
Frequency range (fmin - fmax)
|
45 - 65 Hz |
| Total harmonic distortion | < 5 % |
|
Power factor (cos φac,r)
|
0,85 - 1 ind,/cap, |
GENERAL DATA
|
Width
|
431 mm |
|---|---|
|
Height
|
645 mm |
|
Depth
|
204 mm |
| Weight | 21,5 kg |
| Degree of protection | IP 65 |
| Protection class | 1 |
|
Overvoltage category (DC / AC) 1)
|
2 / 3 |
| Night-time consumption | < 1 W |
| Inverter design | Transformerless |
| Cooling | Regulated air cooling |
| Installation | Indoors and outdoors |
| Ambient temperature range | -40°C - +55°C |
| Permitted humidity | 0 - 100 % |
|
Max. altitude 2)
|
4,000 m |

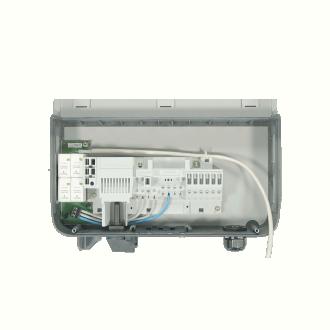

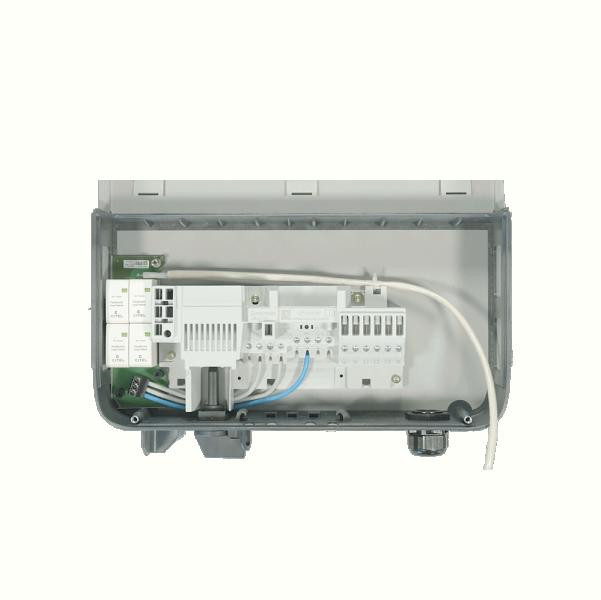

| DC connection technology | 4x DC+ and 4x DC- screw terminals 2.5 - 16 mm² |
| AC connection technology | 3-pin AC screw terminals 2.5 - 16 mm² |
| Certificates and compliance with standards | DIN V VDE 0126-1-1/A1, IEC 62109-1/-2, IEC 62116, IEC 61727, AS 4777-2, AS 4777-3, G98/1, G99/1, CEI 0-21, VDE AR N 4105 |
| Interference emission class | B |
EFFICIENCY
| Max. efficiency (PV - grid) | 98,1 % |
|---|---|
| European efficiency (ηEU) | 97,0 % |
|
η at 5% Pac,r 3)
|
80,8 / 82,5 / 82,5 % |
|
η at 10% Pac,r 3)
|
88,9 / 94,4 / 92,9 % |
|
η at 20% Pac,r 3)
|
93,0 / 97,0 / 95,9 % |
|
η at 25% Pac,r 3)
|
93,9 / 97,2 / 96,6 % |
|
η at 30% Pac,r 3)
|
94,5 / 97,3 / 96,9 % |
|
η at 50% Pac,r 3)
|
95,6 / 97,9 / 97,6 % |
|
η at 75% Pac,r 3)
|
96,0 / 97,9 / 97,8 % |
|
η at 100% Pac,r 3)
|
96,2 / 97,9 / 98,0 % |
| MPP adaptation efficiency | > 99,9 % |
PROTECTION DEVICES
| DC insulation measurement | Yes |
|---|---|
| Overload behaviour | Operating point shift, power limitation |
| DC disconnector | Yes |
| DC Reverse polarity protection | Yes |
INTERFACES
| WLAN / Ethernet LAN | Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON) |
|---|---|
| 6 inputs and 4 digital inputs/outputs | Interface to ripple control receiver |
|
USB (type A socket) 4)
|
Data logging, inverter update via USB flash drive |
|
2x RS422 (RJ45 socket) 4)
|
Fronius Solar Net |
|
Signalling output 4)
|
Energy management (floating relay output) |
| Datalogger and web server | Integrated |
|
External input 4)
|
S0 meter connection / Evaluation of overvoltage protection |
| RS485 | Modbus RTU SunSpec or meter connection |
Fise tehnice Invertor on-grid monofazat 4600W FRONIUS PRIMO 4.6-1 WLAN/LAN/WEBSERVER
