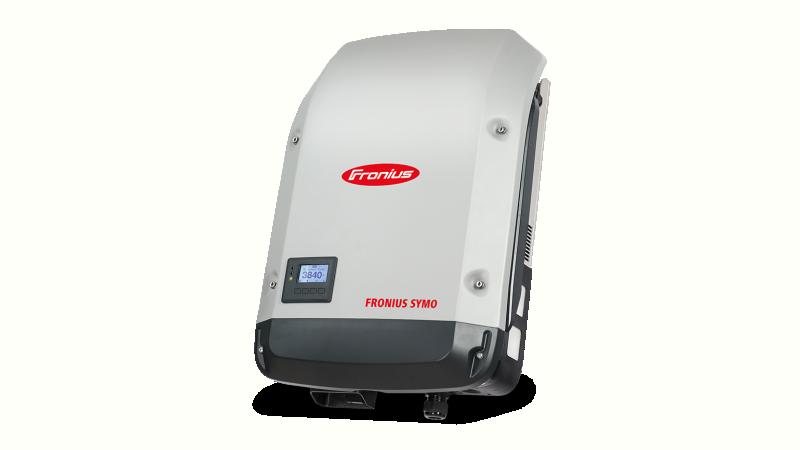

invertor on-grid trifazat 8200W Fronius Symo 8.2-3-M WLAN
Cod produs: fsymo8w
10272.96 Lei + TVA
Pers. Fizice si Institutii: TVA 5% inclus
Pers. Juridice: TVA 19% inclus
Disponibilitate:
Stoc limitat
Garantie: 1 ani
INPUT DATA
| Number of MPP trackers | 2 |
|---|---|
|
Max. input current (Idc max)
|
16 / 16 A |
|
Max. short circuit current, module array*
|
31 / 31 A |
|
DC input voltage range (Udc min - Udc max)
|
150 - 1000 V |
|
Feed-in start voltage (Udc start)
|
200 V |
|
Nominal input voltage (Udc,r)
|
595 V |
|
MPP voltage range (Umpp min - Umpp max)
|
267 - 800 V |
| Usable MPP voltage range | 150 - 800 V |
| Number of DC connections | 2 + 2 |
|
Max. PV generator power (Pdc max)
|
16,4 kWpeak |
OUTPUT DATA
|
AC nominal output (Pac,r)
|
8200 W |
|---|---|
|
Max. output power (Pac max)
|
8200 VA |
|
AC output current (Iac nom)
|
11,8 A |
|
Grid connection (Uac,r)
|
3~ NPE 400/230, 3~ NPE 380/220 V |
|
AC voltage range (Umin - Umax)
|
150 - 280 V |
|
Frequency (fr)
|
50 / 60 Hz |
|
Frequency range (fmin - fmax)
|
45 - 65 Hz |
| Total harmonic distortion | < 3 % |
|
Power factor (cos φac,r)
|
0,85 - 1 ind,/cap, |
GENERAL DATA
|
Width
|
431 mm |
|---|---|
|
Height
|
645 mm |
|
Depth
|
204 mm |
| Weight | 21,9 kg |
| Degree of protection | IP 65 |
| Protection class | 1 |
|
Overvoltage category (DC / AC) 1)
|
2 / 3 |
| Night-time consumption | < 1 W |
| Inverter design | Transformerless |
| Cooling | Regulated air cooling |
| Installation | Indoors and outdoors |
| Ambient temperature range | -25°C - +60°C |
| Permitted humidity | 0 - 100 % |
|
Max. altitude 2)
|
2,000 m / 3,400 m |
| DC connection technology | 4x DC+ and 4x DC- screw terminals 2.5 - 16 mm² (16 mm² without ferrules) |
| AC connection technology | 5-pin AC screw terminals 2.5 - 16 mm² (16 mm² without ferrules) |
| Certificates and compliance with standards | ÖVE / ÖNORM E 8001-4-712, DIN V VDE 0126-1-1/A1, VDE AR N 4105, IEC 62109-1/-2, IEC 62116, IEC 61727, AS 3100, AS 4777-2, AS 4777-3, CER 06-190, G83/2, UNE 206007-1, SI 4777, CEI 0-21, NRS 097 |
| Interference emission class | B |
EFFICIENCY
| Max. efficiency (PV - grid) | 98 % |
|---|---|
| European efficiency (ηEU) | 97,7 % |
|
η at 5% Pac,r 3)
|
89,8 / 93,8 / 90,6 % |
|
η at 10% Pac,r 3)
|
92,8 / 96,1 / 94,5 % |
|
η at 20% Pac,r 3)
|
95,0 / 97,6 / 96,6 % |
|
η at 25% Pac,r 3)
|
95,5 / 97,7 / 97,0 % |
|
η at 30% Pac,r 3)
|
95,8 / 97,8 / 97,2 % |
|
η at 50% Pac,r 3)
|
96,2 / 98,0 / 97,6 % |
|
η at 75% Pac,r 3)
|
96,2 / 98,0 / 97,6 % |
|
η at 100% Pac,r 3)
|
96,0 / 97,8 / 97,5 % |
| MPP adaptation efficiency | > 99,9 % |
PROTECTION DEVICES
| DC insulation measurement | Ja |
|---|---|
| Overload behaviour | Arbeitspunktverschiebung, Leistungsbegrenzung |
| DC disconnector | Ja |
| DC Reverse polarity protection | Ja |
INTERFACES
| WLAN / Ethernet LAN | Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON) |
|---|---|
| 6 inputs and 4 digital inputs/outputs | Anbindung an Rundsteuerempfänger |
|
USB (type A socket) 4)
|
Datenlogging, Wechselrichter-Update per USB-Stick |
|
2x RS422 (RJ45 socket) 4)
|
Fronius Solar Net |
|
Signalling output 4)
|
Energiemanagement (potentialfreier Relaisausgang) |
| Datalogger and web server | Integriert |
|
External input 4)
|
Anbindung an S0-Zähler / Auswertung Überspannungsschutz |
| RS485 | Modbus RTU SunSpec oder Zähleranbindung |
